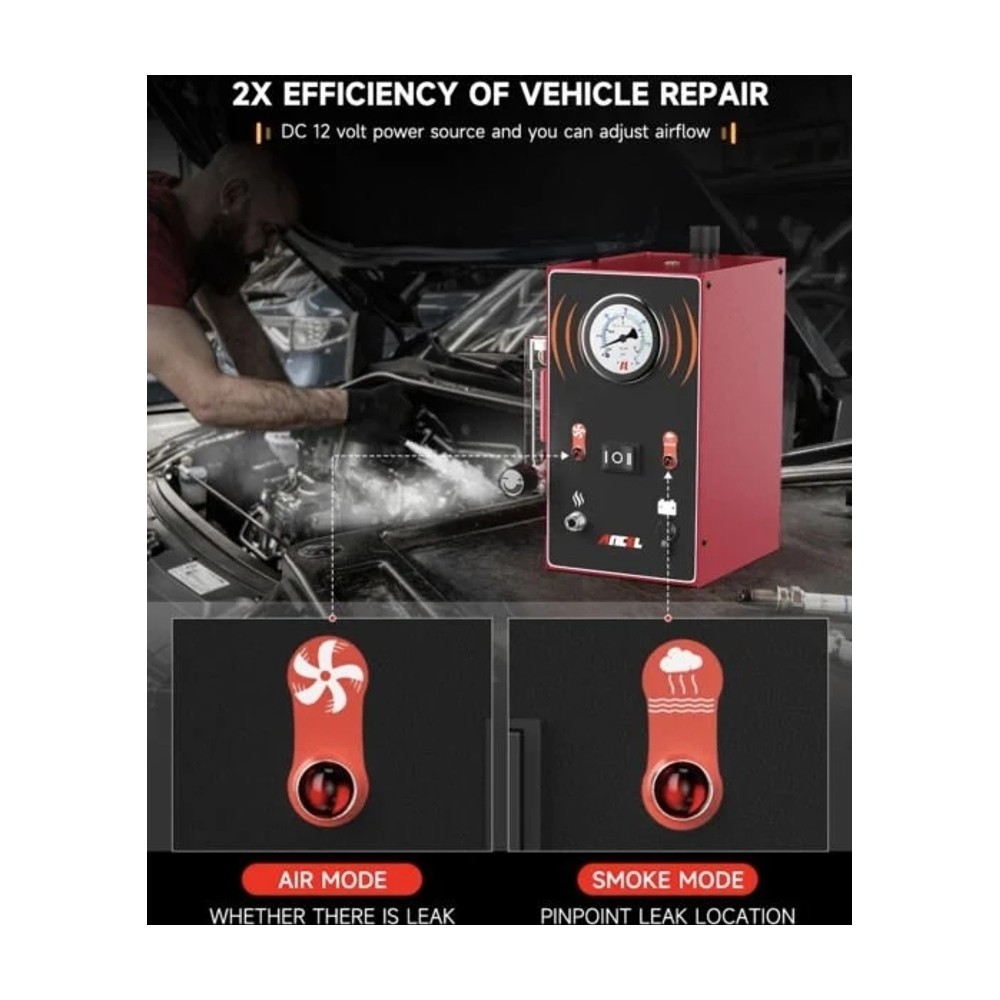

Smoke Leak Detection Device: Ancel S300

The Ancel S300 is an EVAP smoke leak detection and fuel line diagnostic device. This device is universal and professional in its functionality.

With the Ancel S300, you can test systems such as the intake system, exhaust system, and fuel tank, and detect any leaks that may be present.

Key Features of the Ancel S300 EVAP Smoke Leak Detection and Fuel Line Diagnostic Device:

• The Ancel S300 offers extensive vehicle support: With the Ancel S300, you can test pipe systems in cars, motorcycles, off-road vehicles, commercial vehicles, ATVs, boats, and essentially all types of vehicles.
• The Ancel S300 is a highly powerful and user-friendly device: It comes with its own built-in air pump, eliminating the need for additional air machines.
• The device starts emitting smoke within 30 seconds after being connected to a 12V power source.
• The Ancel S300 incorporates advanced technology: Its advanced technology allows for working on the EVAP system with ease.
• The device features safeguards against excessive heating and cooling: If the operating temperature exceeds 75 degrees Celsius or drops below -20 degrees Celsius, the device detects this and activates its self-protection mode.

How to perform a leak test using the device:

You can use baby oil for the test. Fill 20 ml of baby oil and hang it on the device.

Connect the device to a 12V power source and start it. The device will fill the pipe with smoke within 30 seconds, allowing you to check for any leakage points.

Important considerations when using the device:

• If you are using the Ancel S300 smoke detector device for the first time, fill it with 20 ml of baby oil. Be careful not to exceed 20 ml. Refill the oil as it decreases, ensuring it stays at 20 ml.
• It is necessary to regularly change the oil in the device.
• Do not operate the device for more than 8 minutes as it requires resting time.
• The device may become hot during operation, so exercise caution when touching it.
• If you need to separate the pipes, make sure to seal the other ends with plugs.

Package Contents: Power cable, funnel, hook, user manual, air intake bag, adapter cone, rubber, and smoke delivery hose.
