Autel MaxiSYS MS909EV is a next-generation advanced diagnostic solution that can also be used on gasoline and diesel vehicles as well as electric and hybrid vehicles. The device focuses on rapid analysis of the high-voltage (HV) system that is critical on EVs; fault code reading/clearing ve live data display and other core diagnostic functions comprehensively.

One of the points that sets MS909EV apart is the detailed guidance structure prepared for EV/hybrid systems: on the device you will find high-voltage system block diagrams, component and connector diagrams together with step-by-step system removal instructions . This approach aims for a safer and guided diagnostic process on EV/Hybrid faults.

On the battery side it provides SoC (State of Charge) ve SoH (State of Health) analyses to help evaluate the real battery condition. Also battery pack analysis, via OBD or special cables/jumpers included in the box by establishing a direct connection; detailed graphs and connection guidance are shown on the screen.

In daily use MS909EV supports staying current via internet automatic system/software updates and instant notifications to stay up to date. Interactive Data Logging sessions aim to transfer data directly to the Autel support team for error/bug resolution. In addition, a “multi-tasking on one screen” approach and cloud-based data management features are highlighted for organizing customer information and vehicle records.

Technical Specifications

• Operating System: Android 10.0

• Processor: Qualcomm 660 Octa-core Processor
  (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

• Memory: 4GB RAM & 128GB Internal Storage

• Display: 9.7” TFT-LCD, 1536×2048 resolution, capacitive touchscreen

Connectivity

• Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)

• BT V5.0 + BR/EDR

• GPS

• USB 2.0 (2× USB Type-A port + 1× Mini USB port)

• HDMI 2.0

• SD Card (supports up to 256GB)

Camera

• Rear: 16 MP, autofocus, flash

• Front: 16 MP

Sensors

• Gravity Accelerometer

• Ambient Light Sensor (ALS)

Audio Input/Output

• Microphone

• Dual speakers

• 3-Band 3.5 mm stereo/standard headphone jack

Power and Battery

• 15000mAH 3.8V lithium-polymer battery

• Charging with 12V AC/DC power supply (0°C – 45°C)

Adapter

• Input Voltage: 12V/3A Adapter

Operating Conditions

• Operating Temperature: 0 – 50°C (32 – 122°F)

• Storage Temperature: -20 – 60°C (-4 – 140°F)

Size and Weight

• Dimensions (W×H×D): 304.4 mm × 227.8 mm × 42.5 mm

• Weight: 1.66 kg (3.66 lb.)

Supported Protocols

CANFD, DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

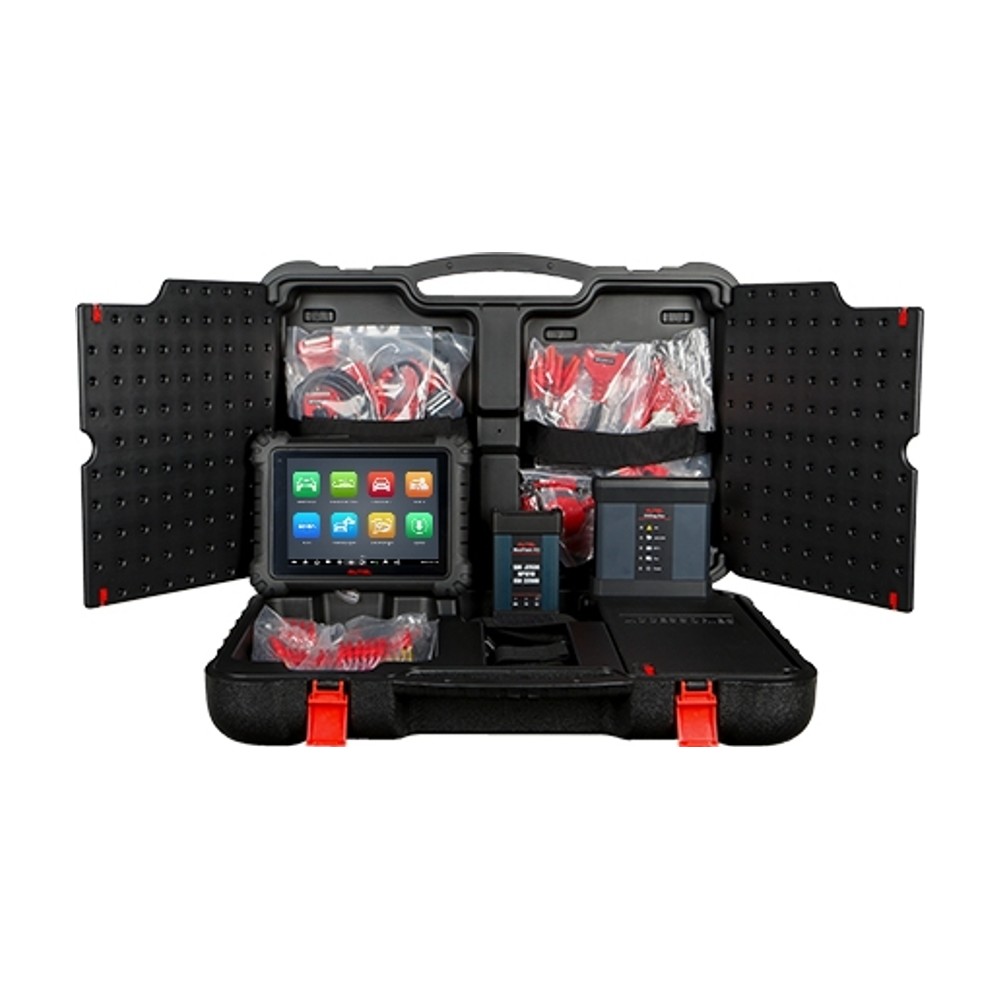

Box Contents
