Description
Autel MaxiSys MS909S2
AI-Powered Professional Diagnostic Tool
Full System Diagnostics
Read and clear fault codes, view live data, perform service resets, and access ECU reprogramming capabilities.
MAX AI Assistant
Voice-activated commands for hands-free operation, easily manage diagnostics and repair tasks even when your hands are busy.
Advanced Programming
Specialist functions for BMW and Mercedes-Benz, including ECU coding and adaptation capabilities for professional solutions.

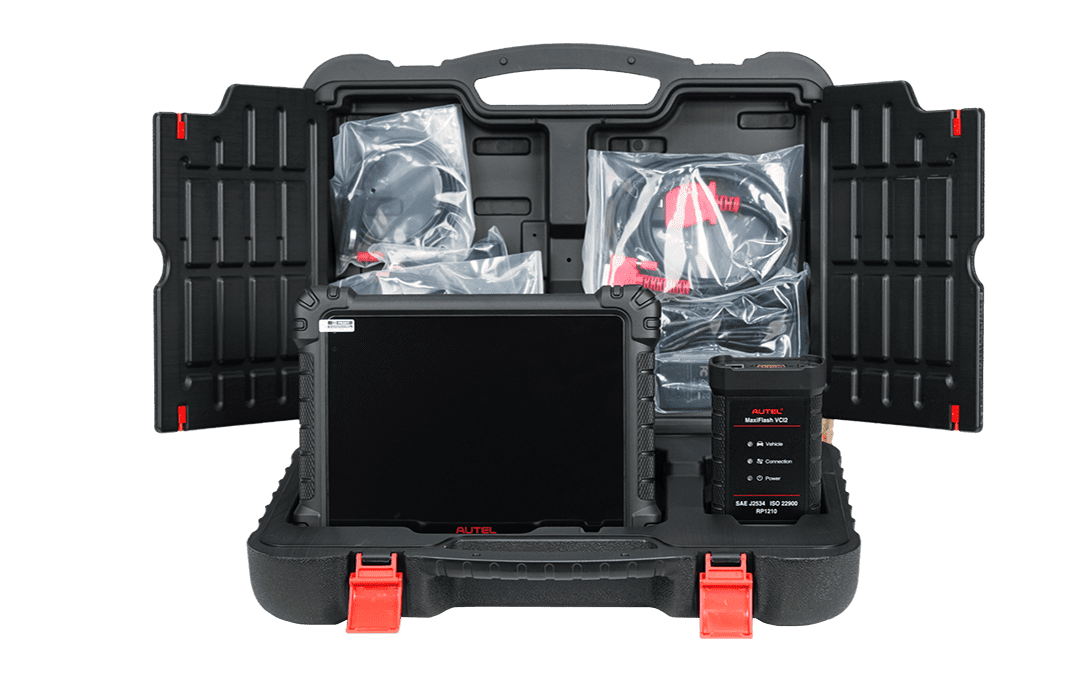

Autel MaxiSys MS909S2: Powerful Diagnostic Solution for Professional Workshops
The Autel MaxiSys MS909S2 is a powerful and versatile automotive diagnostic tool designed for professional technicians and modern workshops. Built with advanced software and wide vehicle coverage, the MS909S2 delivers outstanding performance without the oscilloscope hardware found on the Ultra S2 model. Instead, it comes with the reliable MaxiFlash VCI2, supporting key communication protocols including D-PDU, RP1210, CAN-FD, J2534, and DoIP, ensuring compatibility with both new and older vehicles.
Comprehensive Diagnostic Capabilities
The MS909S2 offers full system diagnostics with the ability to read and clear fault codes, view live data, perform service resets, and access ECU reprogramming across all vehicle systems. Specialist programming functions for BMW and Mercedes-Benz provide brand-specific solutions with ECU coding and adaptation features. Secure Gateway access enables seamless connection to modern vehicles with gateway protection.
Wide Vehicle Coverage
Designed to work with a wide range of makes and models, from legacy cars to the latest technology. Supports advanced diagnostics, active tests, special functions, and coding adaptations on 1996 and later US, Asian, and European vehicles. Topology Mapping V3 technology provides a clear, color-coded display of the vehicle's control module network, helping technicians identify faults and communication issues faster.
MS909S2 Key Features
11" High Resolution
12GB RAM + 256GB
Android 13 OS
MaxiFlash VCI2
Network Topology 3.0
Dual WiFi Support
DC Fast Charging
Remote Expert Support
MaxiFlash VCI2 Technology
Reliable and Powerful Vehicle Communication Interface
Multi-Protocol Support
MaxiFlash VCI2 supports key communication protocols including D-PDU, RP1210, CAN-FD, J2534, and DoIP, ensuring full compatibility with both new and older vehicles. Designed for professional-level vehicle communication and reliable data transfer.
DoIP & CAN-FD Support
Modern vehicle communication protocols:
- Diagnostics over Internet Protocol (DoIP)
- CAN-FD high-speed data transfer
- Secure Gateway access
J2534 Programming
ECU programming and flash capabilities:
- OEM-level ECU programming
- Software updates and flashing
- Coding and adaptation procedures
Universal Vehicle Support
Comprehensive vehicle coverage:
- 1996 and later vehicles
- D-PDU and RP1210 heavy-duty support
- Bluetooth connectivity convenience
MAX: Hands-Free AI Assistant
Just say "Hey MAX, start system scan" and you're ready!
Your Assistant When Hands Are Busy
MAX enables hands-free navigation of the MS909S2 interface and provides voice command functionality for various tasks. Effortlessly initiate a system scan, access maintenance tasks, or execute active tests.
Data-Driven Diagnostics
Revolutionary Fault Detection with Enhanced PID Analysis
Enhanced Graphing
Visualize multiple parameters to identify relationships between PIDs and pinpoint system anomalies.
Multi-PID Selection
Analyze related parameters simultaneously. Ideal for engine fault, performance, and emissions troubleshooting.
Enhanced Split-Screen
Diagnostics+X feature allows multiple applications simultaneously for efficient workflow.
Live Data Diagram
Vehicle system diagram with relevant live data displayed at critical process points.
Technical Specifications
| Feature | Description |
|---|---|
| Model | MaxiSys MS909S2 |
| Storage | 12GB RAM + 256GB |
| Screen | 11" TFT-LCD (2176×1600) Corelle Glass |
| Operating System | Android 13 |
| Battery | 15,000 mAh Lithium-Polymer |
| Camera | Rear: 16MP, Front: 16MP |
| Wi-Fi | Dual WiFi |
| DC Fast Charging | Supported |
| Bluetooth | Supported |
| VCI | MaxiFlash VCI2 |
| Charging Dock | Not Included |
| Oscilloscope | Not Included (Active scope in software) |
| Multimeter | Not Included |
| Protocol Support | DoIP, CAN-FD, J2534, D-PDU, RP1210 |
| Remote Expert | Supported |
| Warranty | 1-Year Warranty |
| Software Updates | 2 Years Free Updates |
Frequently Asked Questions
All your questions about Autel MaxiSys MS909S2 answered
What are the key differences between MS909S2 and Ultra S2?
expand_moreThe MS909S2 has the same powerful software features as the Ultra S2, but with some hardware differences:
- check_circle 11-inch display (13.7-inch on Ultra S2)
- check_circle 256GB storage (512GB on Ultra S2)
- check_circle VCI2 unit (VCMI2 on Ultra S2)
- check_circle No oscilloscope or multimeter hardware
- check_circle Charging dock not included
However, all professional software features including MAX AI assistant, Topology 3.0, full system diagnostics, and ECU programming are available.
Which protocols does VCI2 support?
expand_moreMaxiFlash VCI2 offers comprehensive protocol support for full compatibility with modern and legacy vehicles:
- check_circle DoIP: Diagnostics over Internet Protocol
- check_circle CAN-FD: High-speed data transfer
- check_circle J2534: OEM programming standard
- check_circle D-PDU: Heavy-duty diagnostic support
- check_circle RP1210: Commercial vehicle standard
Note: An active software subscription is required to access Secure Gateway, DoIP, and CAN-FD protocols.
What does the MAX AI assistant do?
expand_moreMAX is an advanced AI assistant that enables voice control of your MS909S2:
- check_circle Hands-free navigation - use when hands are dirty or busy
- check_circle Voice command system scan initiation
- check_circle Quick access to maintenance tasks
- check_circle Execute active tests with voice commands
Simply say "Hey MAX" to activate the assistant and give your commands!

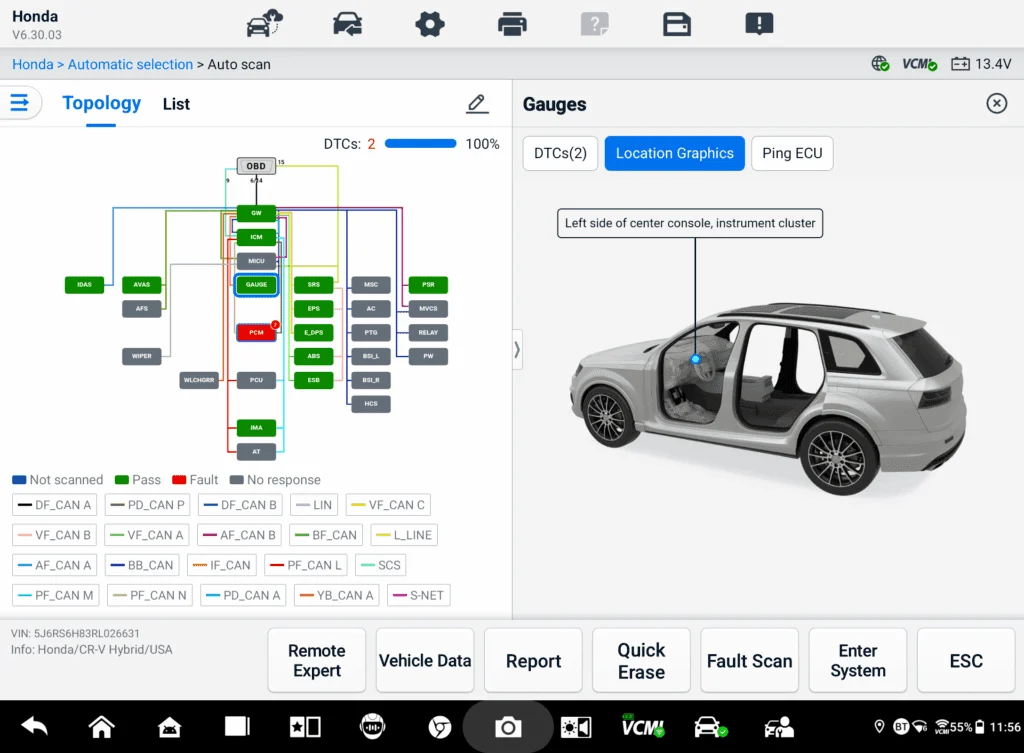

What is Network Topology 3.0?
expand_moreNetwork Topology 3.0 is an advanced feature for visual analysis of vehicle electronic systems:
- check_circle Color-coded visual map of all vehicle control modules
- check_circle Dynamic network analysis with real-time status monitoring
- check_circle Quick identification of module communication issues
- check_circle At-a-glance system health status display
This feature greatly simplifies troubleshooting complex electronic systems.
Which vehicles does MS909S2 support?
expand_moreThe MS909S2 supports a wide range of vehicles:
- check_circle 1996 and later US, Asian, and European vehicles
- check_circle 80+ makes and hundreds of models supported
- check_circle Modern electric and hybrid vehicles
- check_circle Heavy-duty and commercial vehicles (with D-PDU, RP1210)
- check_circle Specialist programming functions for BMW and Mercedes-Benz
Full system diagnostics, ECU programming, coding, and adaptation procedures are supported.
How can I perform measurements without oscilloscope hardware?
expand_moreWhile the MS909S2 doesn't have physical oscilloscope hardware, it features "active scope" in the software:
- check_circle Direct oscilloscope view from live data stream
- check_circle PID data analysis in graphical format
- check_circle Multi-PID comparative visualization
For advanced electrical measurements requiring physical oscilloscope, a separate oscilloscope is recommended, or consider the Ultra S2/MS919S2 models.
