Autel Maxisys Ultra EV Electric Vehicle Diagnostic Tool

Maxisys Ultra EV, as part of Autel’s Maxisys series, is a diagnostic tool offered for hybrid, gasoline and diesel vehicles, and especially for the growing number of electric vehicles.

Ultra EV lets you comprehensively diagnose vehicle faults with extended topology mapping and battery pack analysis that can be performed via the OBD connector or with the dedicated cables and jumpers supplied with the device.

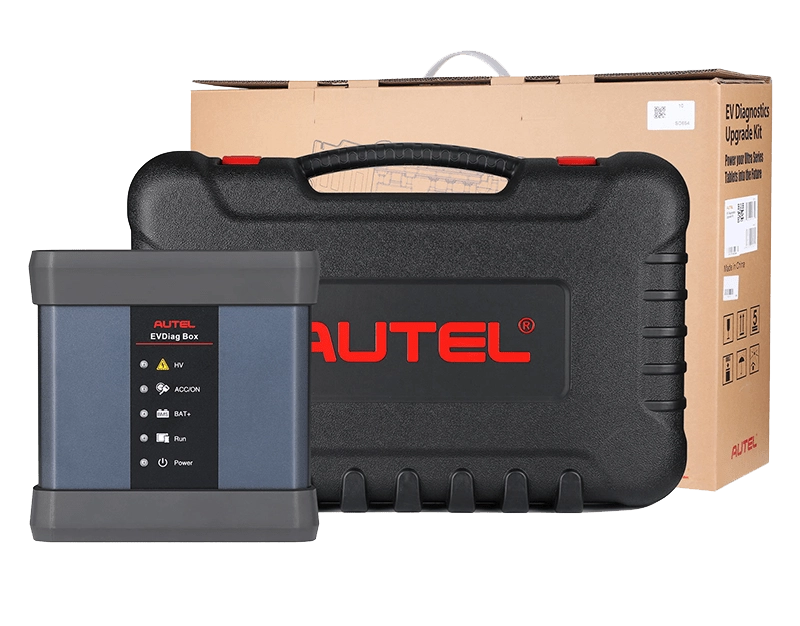

Equipped with a 12.9-inch touchscreen tablet, MaxiFlash VCMI (5-in-1) device, Bluetooth vehicle communication interface and J2534 pass-thru programming device, plus a dedicated EVDiag box, Ultra EV enables reliable tests with detailed graphics and in-depth connection guidance.

Autel Maxisys Ultra EV Electric Vehicle Diagnostic Tool Functions:

• Advanced diagnostics on US, European and Asian brand electric, diesel and hybrid vehicles
• Quick analysis of the EV high-voltage system, including reading and clearing fault codes and viewing live data
• State of Charge and State of Health analysis for the actual condition of the battery
• Battery analysis can be performed via OBD or directly with the dedicated cables and jumpers supplied with the device; the Ultra EV screen provides detailed graphics and connection guidance for reliable testing
• Comprehensive graphics of high-voltage system components and connectors; step-by-step system disassembly instructions
• Direct communication with Autel Support for first-hand resolution of diagnostic faults via Interactive Data Logging sessions
• View all data files, customer information, vehicle records and organization of service operations at the same time
• Cloud-based Data Manager records customer and vehicle records, scanner data and technician notes

Autel Maxisys Ultra EV Diagnostic Tool Features

• Android 7.0 Operating System
• Samsung Exynos8895V octa-core processor (2.3GHz Quad-core + 1.7GHz Quad-core A53)
• 4GB RAM and 256GB Built-in Memory, with SD Card (supports up to 256 GB)
• 12.9-inch TFT-LCD display with 2732 x 2048 resolution and capacitive touchscreen
• Connectivity Options: WiFi x 2 (802.11 a/b/g/n/ac 2x2 MIMO), BT v.2.1 + EDR, GPS, USB 2.0 (Type A two host USB, one USB mini device), HDMI 2.0
• 16 Megapixel Rear Camera, 5 Megapixel Front Camera, Autofocus with Flashlight
• Gravity accelerometer, ambient light sensor (ALS)
• Audio Input/Output : Microphone, Dual Speakers, 3-Band 3.5 mm stereo / standard headphone jack
• 18000 mAh 3.8 V lithium-polymer battery
• Charging with 12 V AC/DC power supply at temperatures between 0 °C and 45 °C
• Input Voltage: 12 V/3A Adapter
• 0 to 50 °C (32 to 122 °F) Operating Temperature
• -20 to 60 °C (-4 to 140 °F) Storage Temperature
• Dimensions:  (W x H x D) 366.5 mm (14.43 ") x 280.9 mm (11.06 ") x 34 mm (1.34 ")
• Weight: 2.18 kg (4.81 lb.)
• Protocols:

DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Clocked Nissan DDL UART, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
