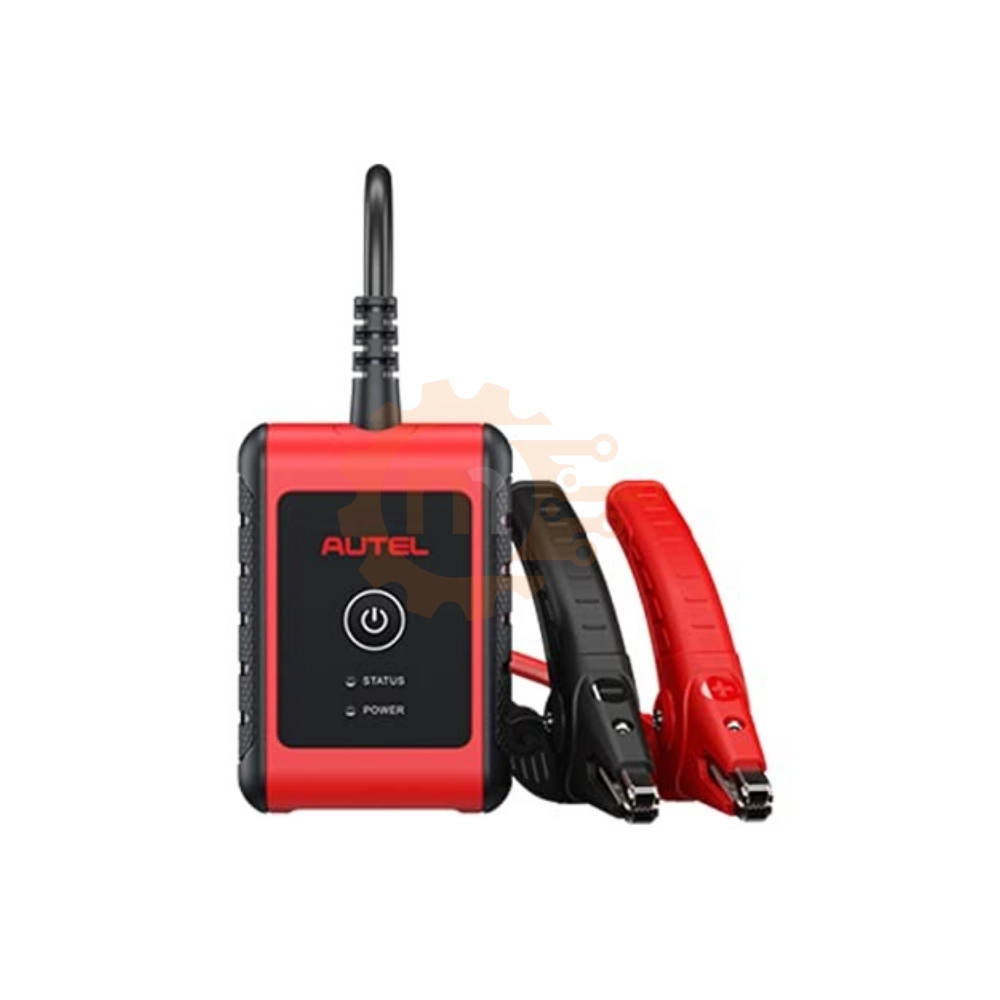

The MaxiBAS BT506 device is a device for analyzing the battery system, for properly examining the battery's cold starting capability and reserve capacity.

It is very important to find out the true health of the battery because if the battery fails or dies, the vehicle may be stranded on the road.

The BT 506 battery analyzer allows us to see the actual health of the battery in the vehicle. In order to see the results of your tests, we need to download a free mobile application to our android or ios phones.

Description:

-Our smartphone communicates with the BT506 device via bluetooth and we can view our test results from our phone app.

-With our BT506 device, we can test in-vehicle and out-of-vehicle batteries.

With the BT506 you can test 12 and 24 starting/charging systems and 6 and 12V batteries.

-You can test any type of battery with BT506; Flooded, AGM, AGM Spiral, EFB and GEL batteries.

-BT 506 device works in accordance with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA.

Technicial Specifications:

-Connection type: It has USB2.0, Type C, Bluetooth V3.0 BR/EDR+ V4.2 LEDual Mode connection types.

It has -5 V DC input voltage.

It has an operating current of < 150 mA at -12 V DC.

-There is no built-in battery.

It has a CCA range of -100 - 2000 A.

It has a voltage range of -6 to 36 V.

- It has an operating temperature between -10° and 50° C.

-Storage temperature is between -20° and 60° C.

-The dimensions of the device are as follows: (L x W x H)107 mm (4.21") x 75 mm (2.95") x 26 mm (1.02").

-The device is 320 g. weighs.

Package Included:

1 main device, 1 clamp cable
