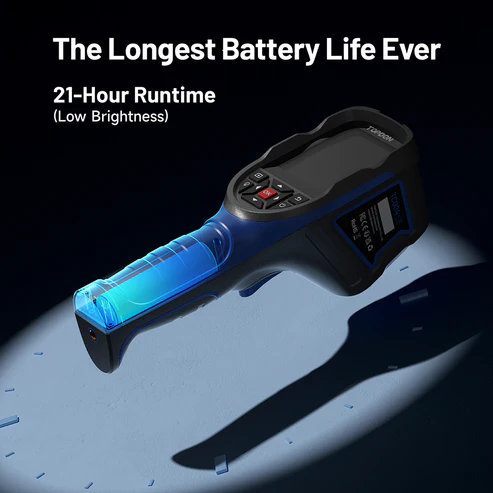

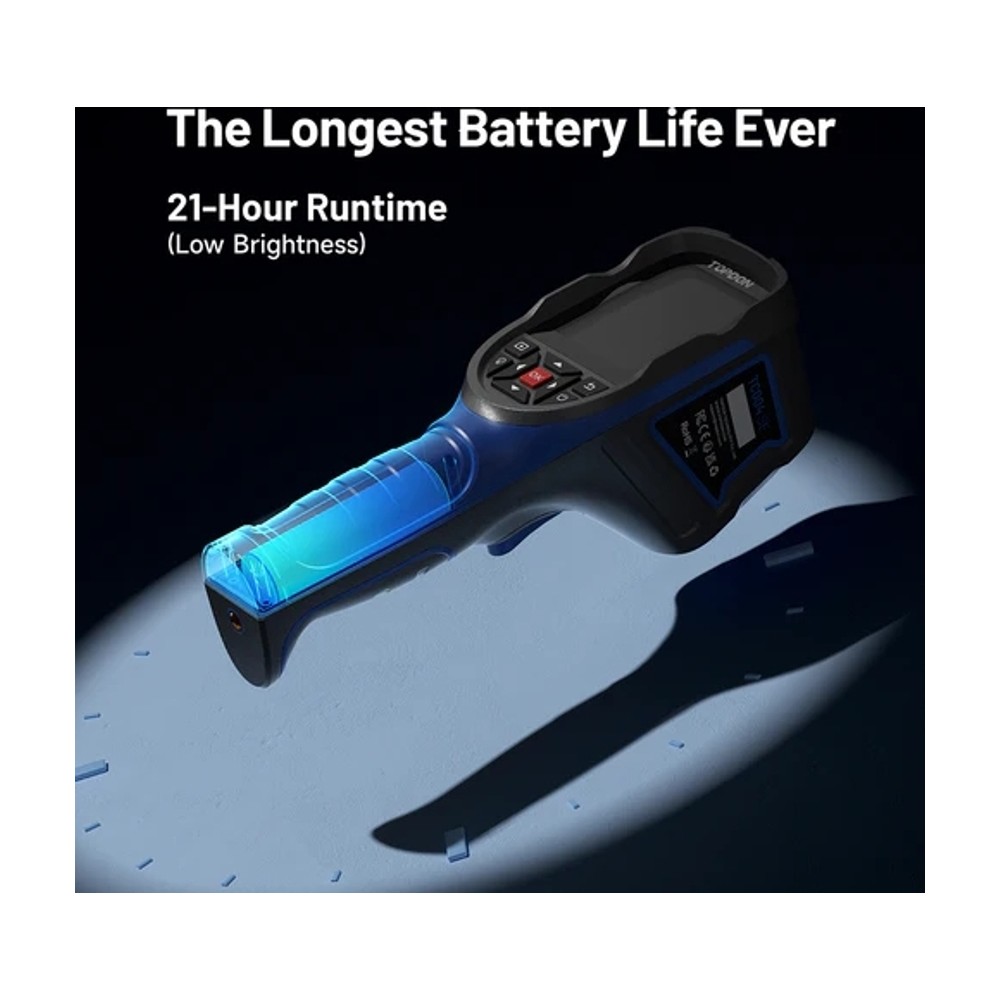

All-Day Battery Life

At the lowest screen brightness 21 saate, and at the highest brightness 16 saate of continuous use. This gives you peace of mind on long jobs. In a scenario of only 3 hours of use per day, a single charge lasts about one week of operation.

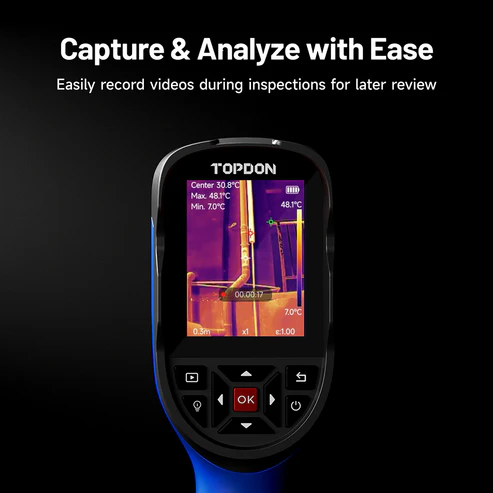

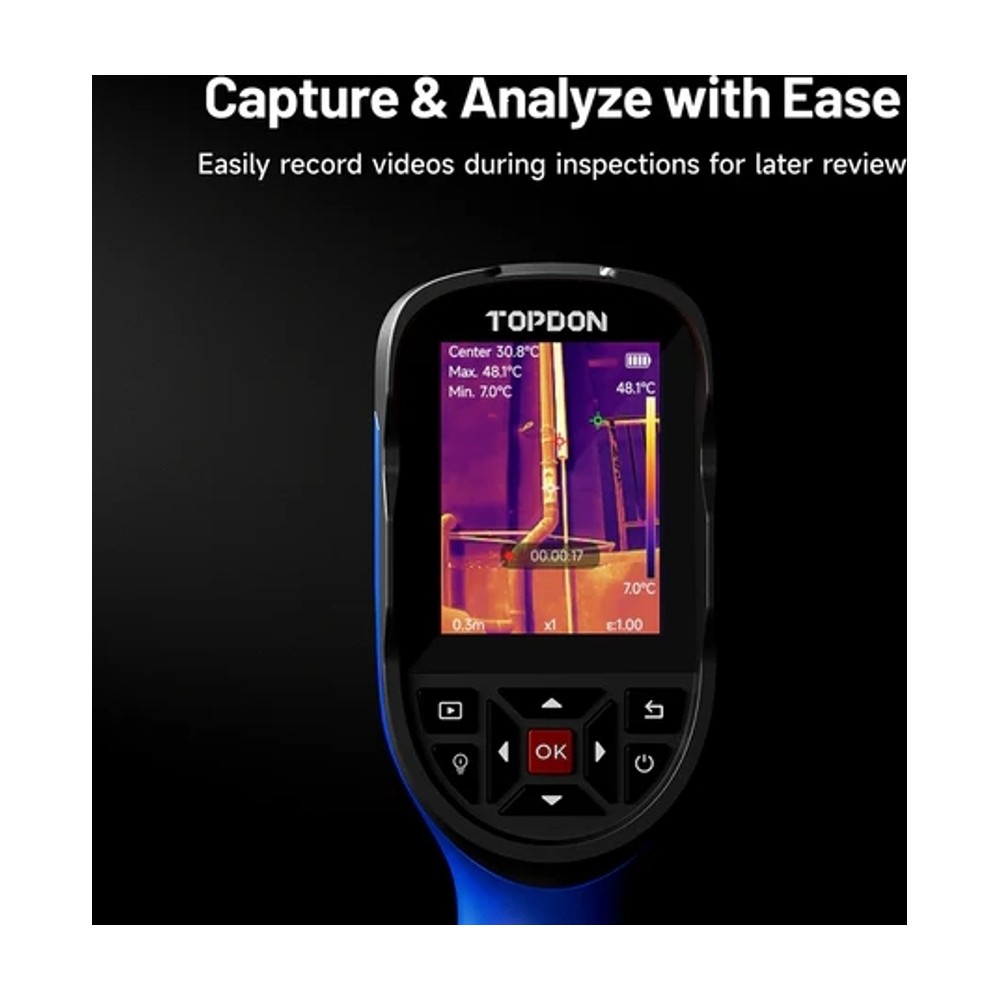

Video Recording

During inspections easy video recording to document your findings quickly and accurately, then replay and evaluate them later.

Built-in 32GB Storage

32GB built-in eMMC storage provides enough space for long-term projects. Approximately 160.000 high-quality thermal images, archive inspection records and review them regularly.

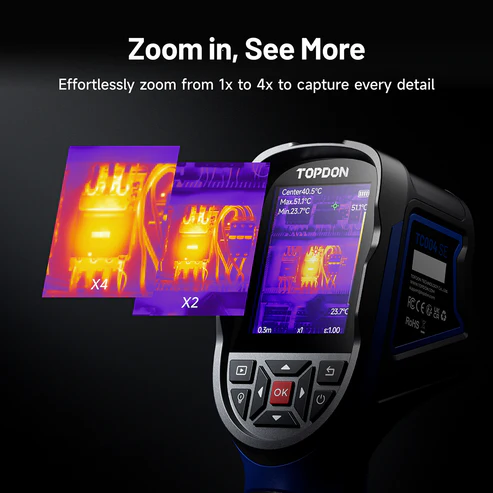

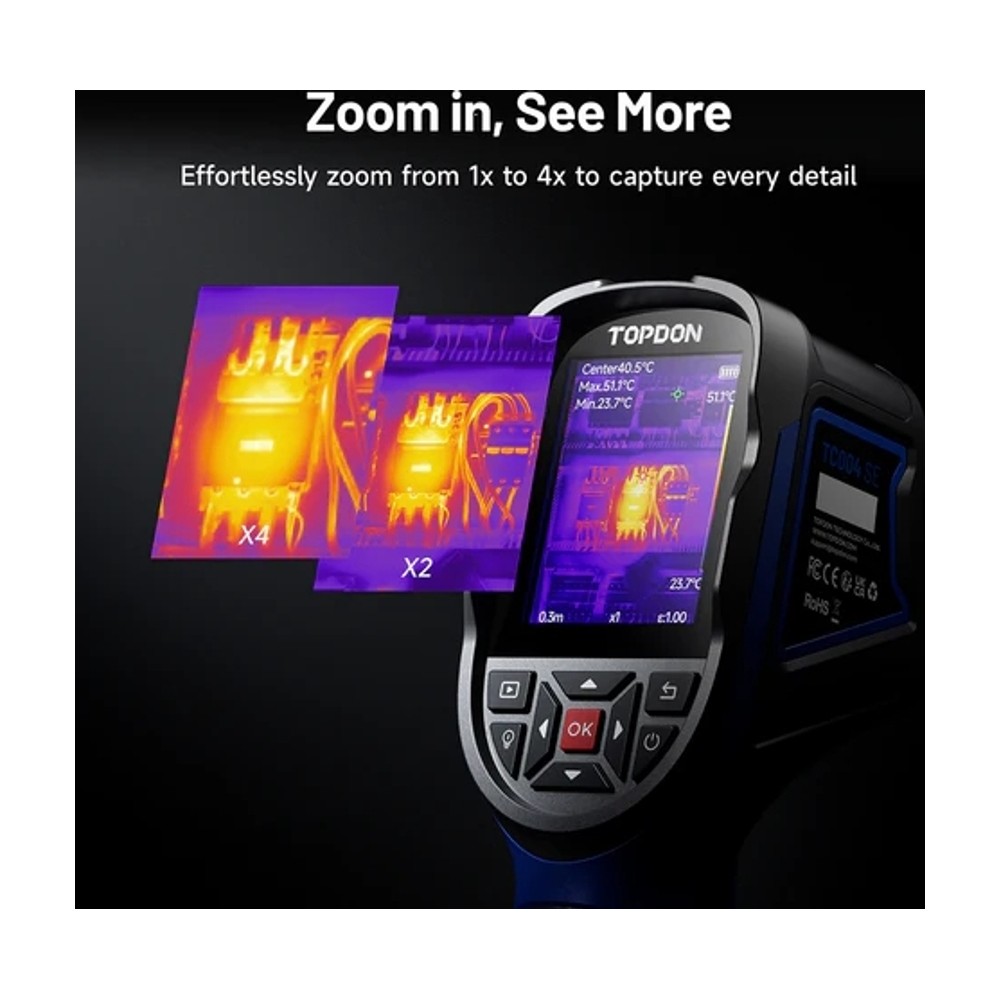

4x Digital Zoom

1x, 2x ve 4x digital zoom options. Whether you inspect small components up close or scan wider areas from a distance, it provides practical use in every scenario.

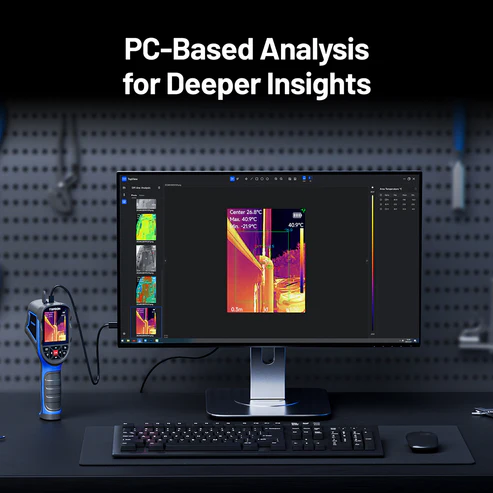

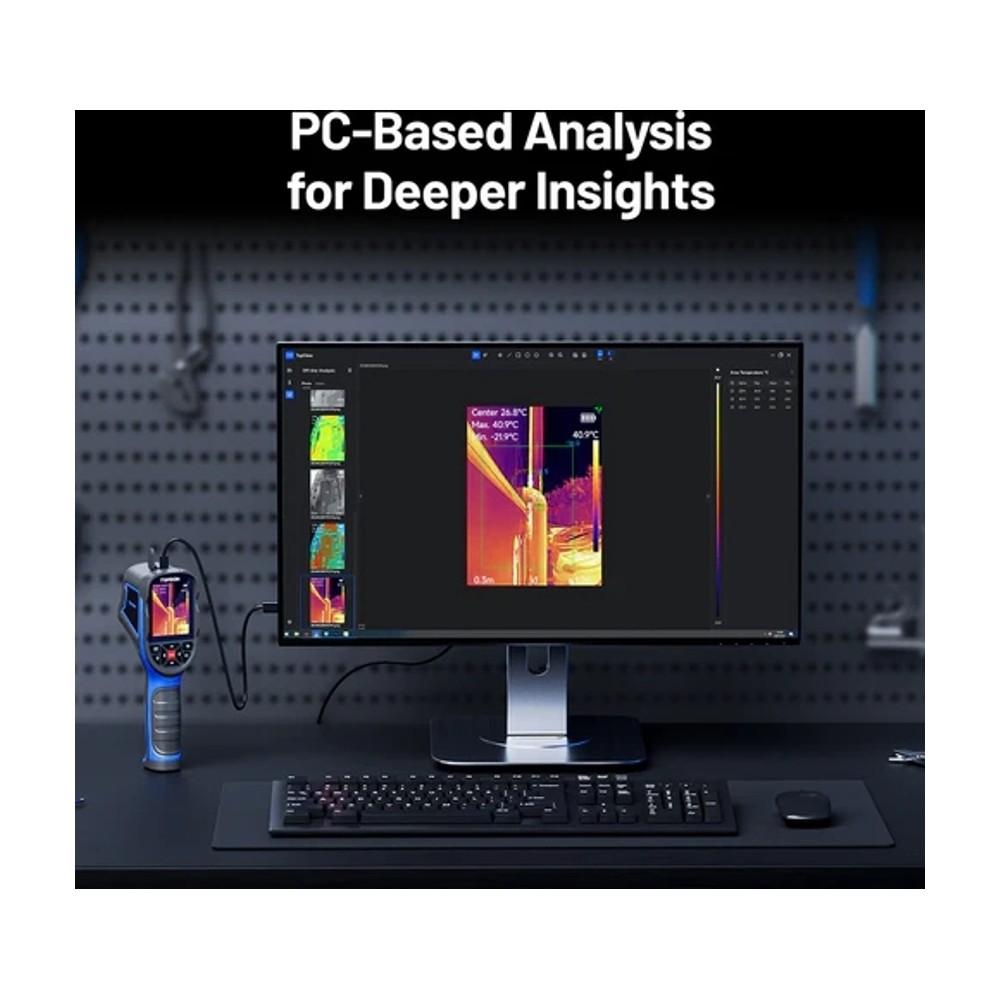

Image Analysis on PC

By transferring thermal images to your computer you can perform more detailed temperature analysis. You can highlight hot/cold spots, compare temperature differences and point, line, plane using flexible analysis methods such as these.

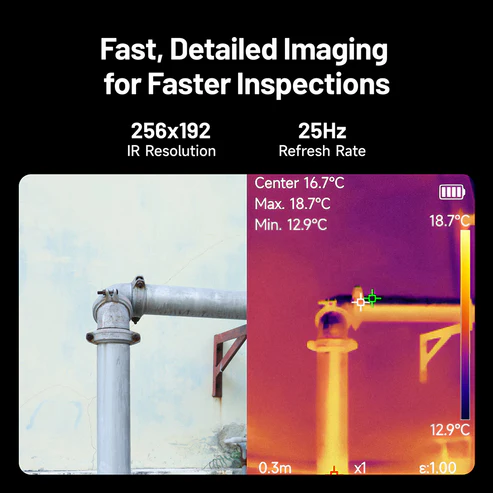

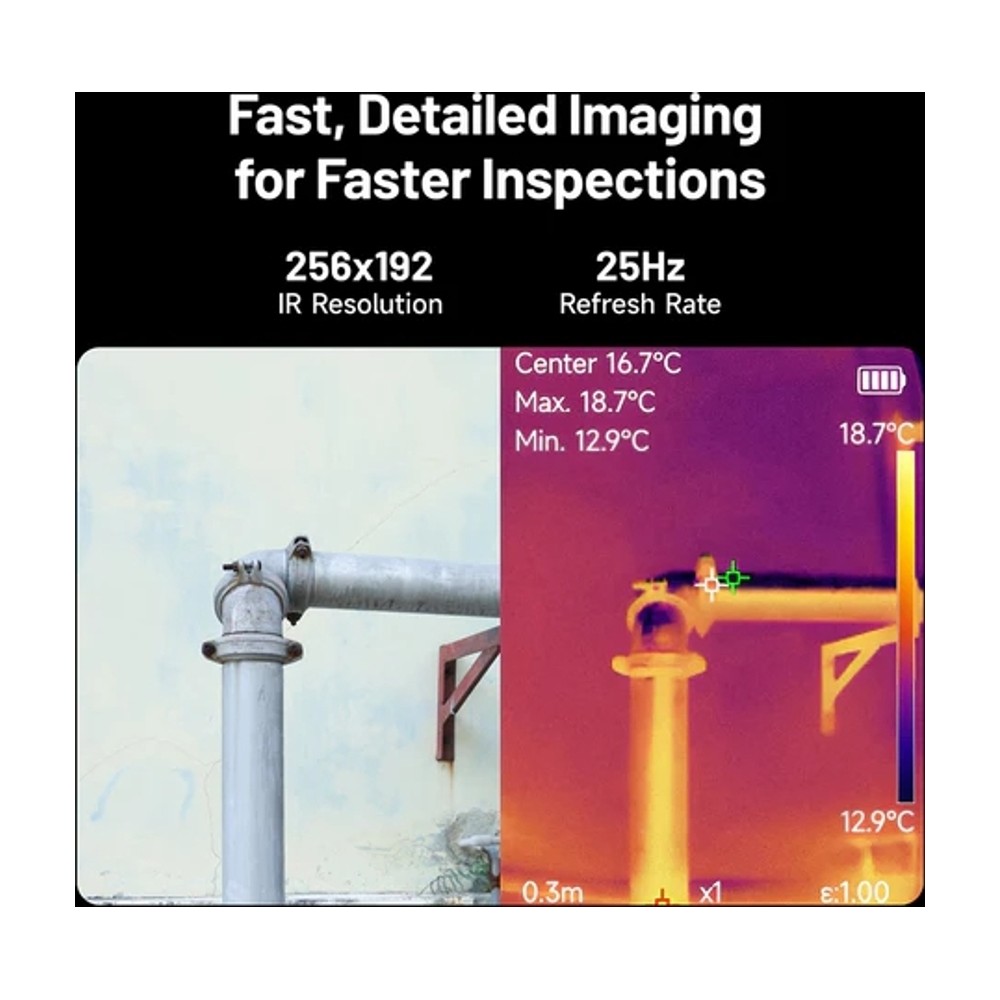

256×192 Resolution, 25Hz Refresh Rate

256×192 IR resolution ve 25Hz refresh rate delivers smooth and clear thermal images. It helps you quickly spot and analyze issues in electrical, power system or building inspections.

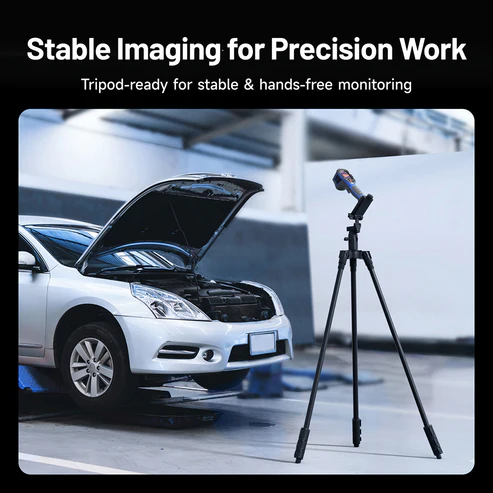

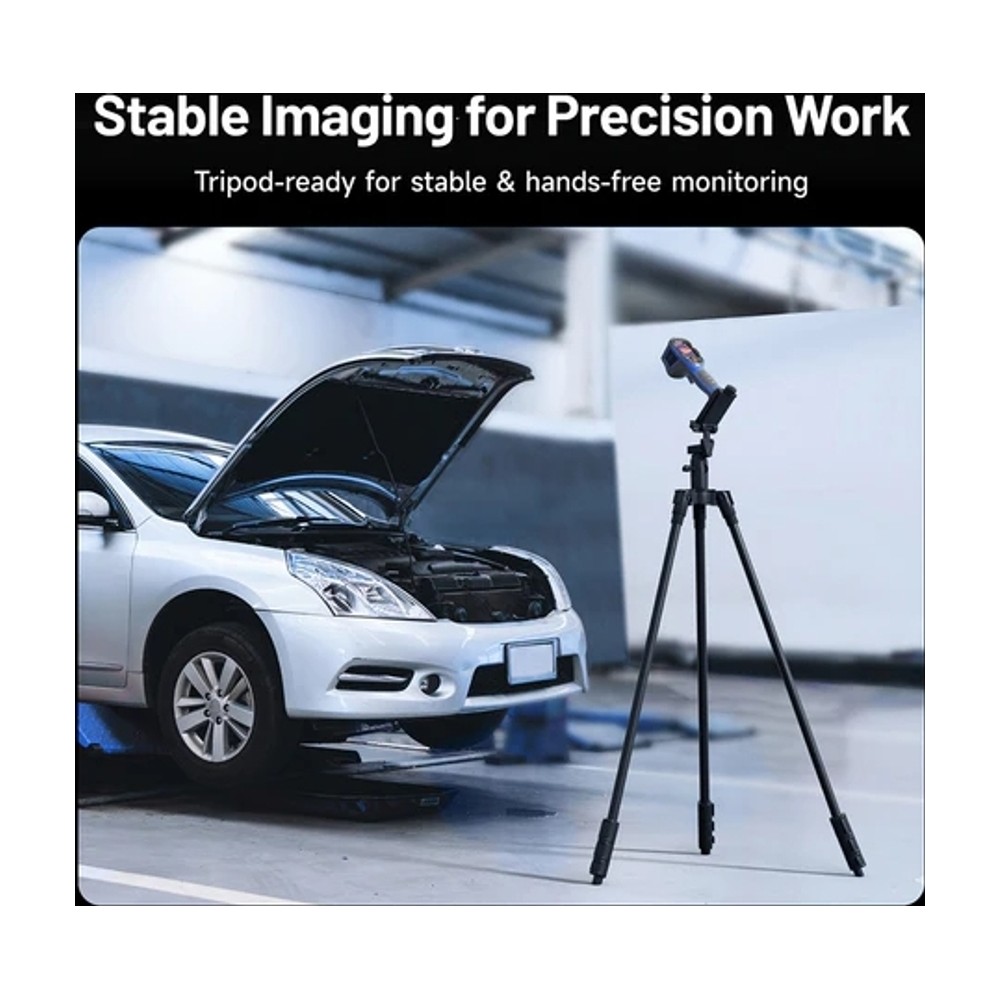

1/4-20 Screw Mount

Dahili 1/4-20 screw hole lets you easily mount the device on a tripod; for long sessions you can stable and hands-free monitoring. Ideal for equipment checks and laboratory tests.

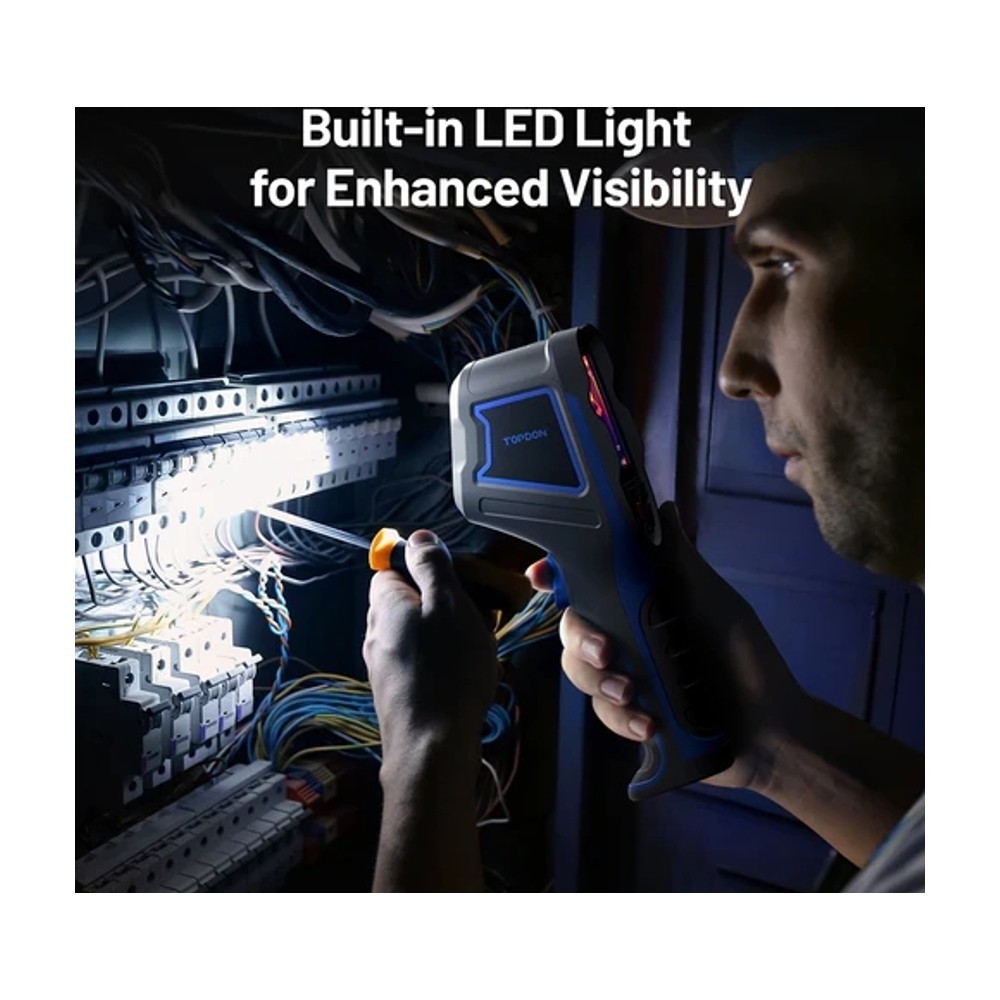

Built-in LED Light Dual LED flashlight, makes working in low-light conditions easier and lets you inspect hard-to-reach areas without carrying extra equipment.

Hardware

• Sistem: Linux

• Operating Mode: Standalone use / use with Windows devices

• Pil Kapasitesi: 5300 mAh

• Ekran: 2.8 inch, 320×240

• Operating Voltage: 5V

• Charge Time: 4 saat

• Battery Life: 16 hours (high brightness) / 21 hours (low brightness)

• Depolama: 32 GB

• LED Flashlight: Yes ✅

---

Display

• Calibration Temperature Measurement Distance: 0.2 m ~ 4 m

• Identification Distance: 0.1 m ~ 40 m

• Recognition Distance: 40 m ~ 80 m

• Detection Distance: 80 m ~ 320 m

• Measurement Accuracy: ±2°C or ±2%

• Infrared Resolution: 256×192

• Odak: 3.2 mm

• Field of View (FOV): 56°×42°

• Spectral Range: 8 ~ 14 μm

• NETD: <40 mK

• Temperature Resolution: 0.1°C

• Frame Rate: 25Hz

• AI Algorithm: Yok ❌

• Image Algorithm: Yok ❌

---

Fonksiyonlar

• Measurement Range: -20 ~ 450°C (-4 ~ 842°F)

• Professional Function: NA

• Digital Zoom: 1x / 2x / 4x

• Image Mode: Thermal Imaging

• Measurement Modes: Center point / hot spot / cold spot

• Video Recording: Yes ✅

• Video Transfer via USB: Yes ✅

• Wi-Fi: Yok ❌

• PC-Based Analysis Software: Supports PC image analysis ✅

• Visible Light Camera Lens: Yok ❌

• Color Palette (Pseudo Color Bar): 10 renk (iron red, white hot, black hot, arctic, rainbow, red hot, medical, jungle, golden red, shimmer, aureate)

• High/Low Temperature Alarms: Yes ✅

• Auto Power Off: 5 min / 10 min / 20 min / Off

• Temperature Units: Celsius / Fahrenheit / Kelvin

---

Other

• Operating Temperature: -10°C ~ +50°C

• Tripod Screw Mount: Yes ✅

• Drop/Shock/Vibration: 2.0 m, shock 25g (IEC 60068-2-27), vibration 2.5g (IEC 60068-2-6)

• IP Koruma: IP54

• Sertifikalar: UN38.3 / DGM / CE / FCC / RoHS / UKCA

• Gross Weight: 1100 g

• Device Weight: 520 g

• Package Size: 280×165×120 mm

• Language Support: 13 languages (English, Traditional Chinese, Korean, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Hungarian, Turkish)

• Updates: Connects to PC for updates

Package Contents

• TC004-SE Thermal Camera

• USB Kablosu

• Carry Case

• User Manual

• Power Adapter




  Kaynaklar

  • TC View Download for Windows
