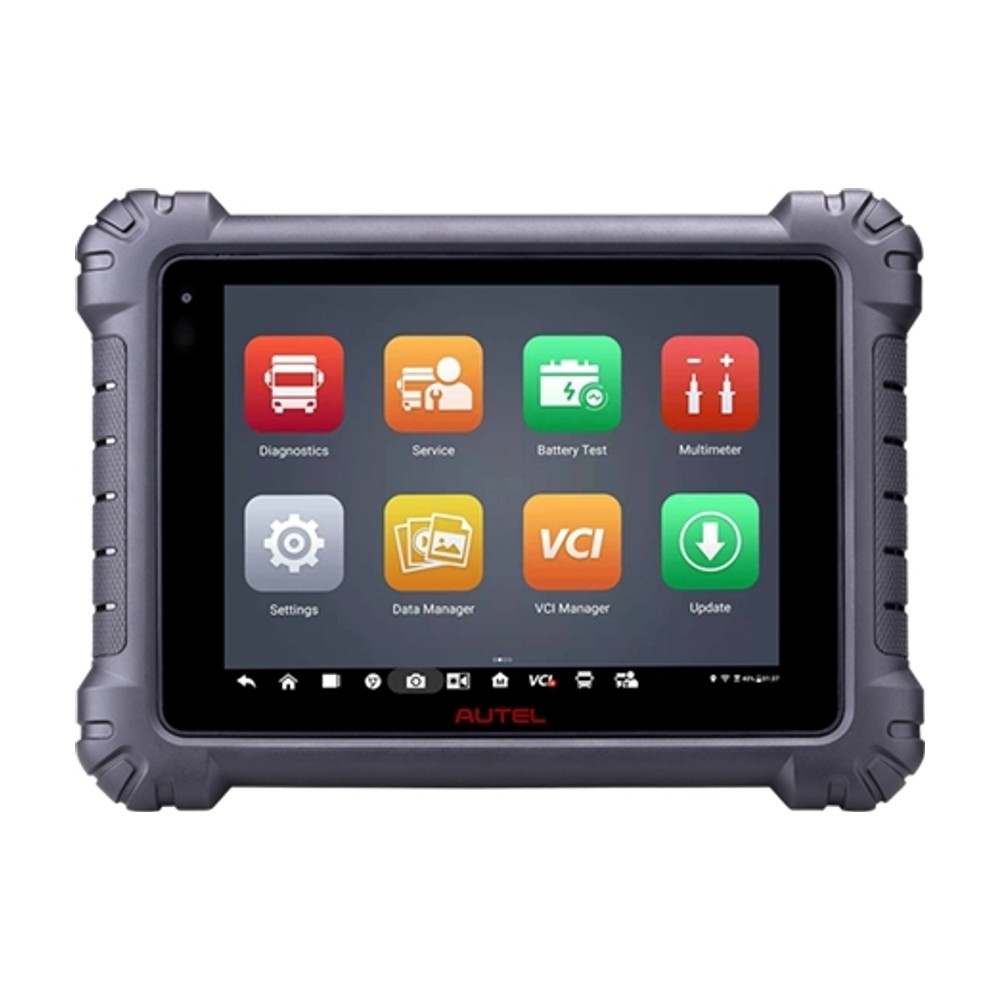

Autel MaxiSYS MS909CV, developed for professional workshops and fleet maintenance teams, an advanced diagnostic tablet compatible with 80+ vehicle models across light–medium–heavy commercial vehicles. 9.7-inch wireless Android-based touchscreen, is designed for fast field use and clear data tracking. With MS909CV you can comprehensively access the vehicle’s electronic systems; read and clear fault codes, view live data and analyze it as graphs and, to pinpoint the fault, active tests (actuator/active tests) can be performed.

The package contents are prepared so commercial-vehicle diagnostic workflows can be completed with a single kit. The included Bluetooth-enabled VCI / J2534 pass-thru interface lets you connect to the vehicle wirelessly for a more flexible workspace. Also included in the kit is the MaxiBAS B200 battery / starter / charging system tester, which makes it easy to quickly check the electrical health of vehicles. For measurement and testing needs, alligator clips, multimeter ve amp clamps are also included in the package. This way you can manage both diagnostic and electrical measurements in the same ecosystem during fault finding.

Another standout advantage of MS909CV is its coverage for advanced driver assistance systems. The tablet, Class 3–5 vehicles and Class 6–8 vehicles with dynamically calibrated systems for ADAS Calibration Software support enables ADAS calibration workflows with suitable equipment. In short, Autel MaxiSYS MS909CV is a powerful solution that combines comprehensive diagnosis, measurement, and maintenance workflows in one device to speed up service processes.

Technical Specifications

• Operating System: Android 10

• Processor: Qualcomm 660 Octa-core
  (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53)

• Memory: 4GB RAM + 128GB Internal Storage

• Display: 9.7” TFT-LCD, 1536×2048 resolution, capacitive touchscreen

Connectivity

• Dual Wi-Fi (802.11 a/b/g/n/ac 2x2 MIMO)

• Bluetooth 5.0 + BR/EDR

• GPS

• USB 2.0 (2× USB Type-A port + 1× Mini USB port)

• HDMI 2.0

• SD Card (supports up to 256GB)

Camera

• Arka Camera: 16 MP, autofocus, flash

• Front Camera: 16 MP

Sensors

• Gravity accelerometer

• Ambient light sensor (ALS)

Audio Input/Output

• Microphone

• Dual speakers

• 3-band 3.5 mm stereo/headset jack

Power and Battery

• Battery: 15000 mAh, 3.8V lithium-polymer

• Charging: via 12V AC/DC adapter (0°C – 45°C range)

Adapter Input

• Input Voltage: 12V / 1.3A

Operating Conditions

• Operating Temperature: 0°C – 50°C

• Storage Temperature: -20°C – 60°C

Size and Weight

• Dimensions (W×H×D): 304.4 mm × 227.8 mm × 42.5 mm

• Weight: 1.66 kg

Supported Protocols

DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire CAN (GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)

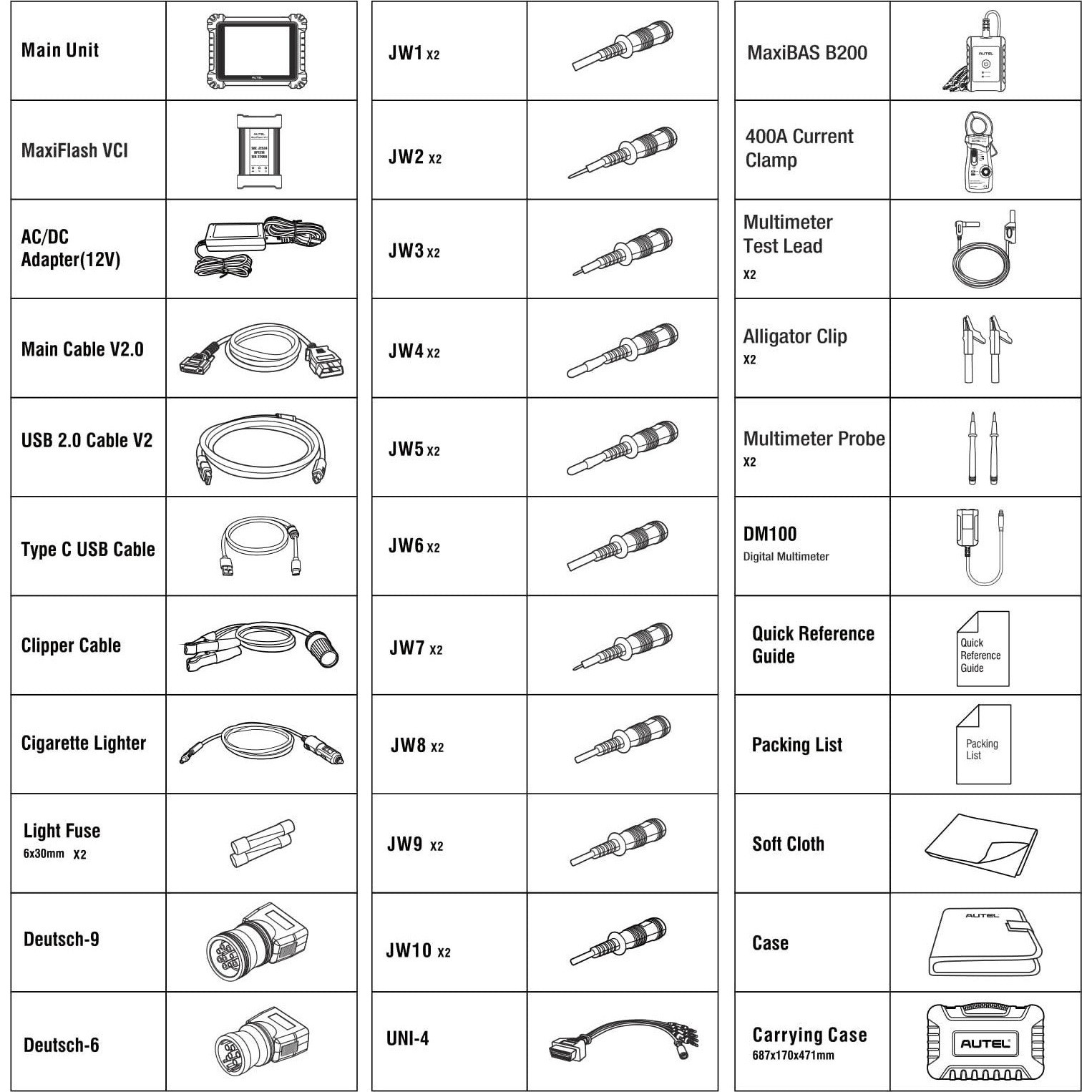

Box Contents (Highlights)
