TOPDON ArtiDiag800 BT 2 is a mid-level diagnostic device designed for “compact yet powerful” use. To improve compatibility with newer vehicles, it supports CAN-FD protocol and, on some brands, the FCA SGW and Renault Gateway access required for advanced operations. This helps you run advanced tasks such as clearing fault codes, service functions, and active tests more smoothly even on vehicles with a secure gateway.

One of its strongest sides is bidirectional control (bidirectional/active tests). By sending commands directly to components such as the fan, injectors, and fuel pump, you can verify parts quickly without removing them—shortening diagnosis time and boosting work efficiency.

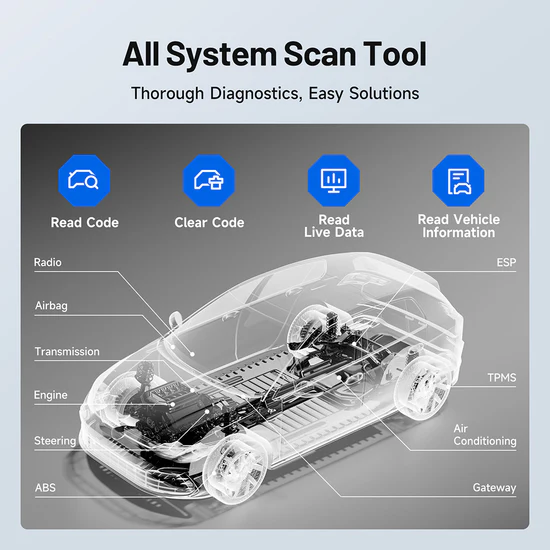

ArtiDiag800 BT 2 offers full-system diagnosis on 80+ vehicle brands, with deep access to critical systems such as engine, transmission, airbag, and gateway. Along with core functions like ECU information display, DTC read/clear, and live data monitoring, you can analyze live data as numbers, graphs, and combined visuals and compare multiple data streams on the same screen.

For wireless use, Bluetooth 5.0 connectivity lets you work more freely around the vehicle and speed up the diagnostic flow with fast data transfer. Practical features such as AutoVIN vehicle identification, data logging, automatic report generation, and report sharing also organize your workflow.

Technical Specifications

• Display: LCD 6 inch, 1400×720

• CPU: MT6761 Quad-Core Cortex-A53, 1.8 GHz

• Operating System: Android 10.0

• RAM: 2 GB

• ROM: 64 GB

• Battery: 5050 mAh / 3.7V

• Operating Voltage: 5V

• Storage Temperature: -20℃ ~ 60℃

• Operating Temperature: 0℃ ~ 50℃

• Device Size: 215×126×46 mm

• Package Size: 274×188×106 mm

• Net Weight: 660 g

• Gross Weight: 1520 g

• Multi-Language Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Korean, Traditional Chinese, Hungarian, Dutch, Polish, Slovak, Swedish, Danish, Greek, Arabic

Package Contents

• ArtiDiag800 BT 2 × 1

• Type-C USB Cable × 1

• US Adapter × 1

• EU Adapter × 1

• UK Adapter × 1

• Power Adapter × 1

• Quick User Guide × 1

• User Manual × 1

• Carrying Case × 1
