Loki Tesla  Electric Vehicle Diagnostic Tool

LOKI has a complete set of functions necessary for repair and maintenance of Tesla Model S, Model X, Model 3

• Provides diagnostic access to the central computer (CID, IC), utility functions of vehicle ECUs, settings, calibration, updates, error codes reading, analyzing, and erasing;
• Is easy to install, connect and operate;
• as a user-friendly interface;
• Is provided with free automatic software updates.

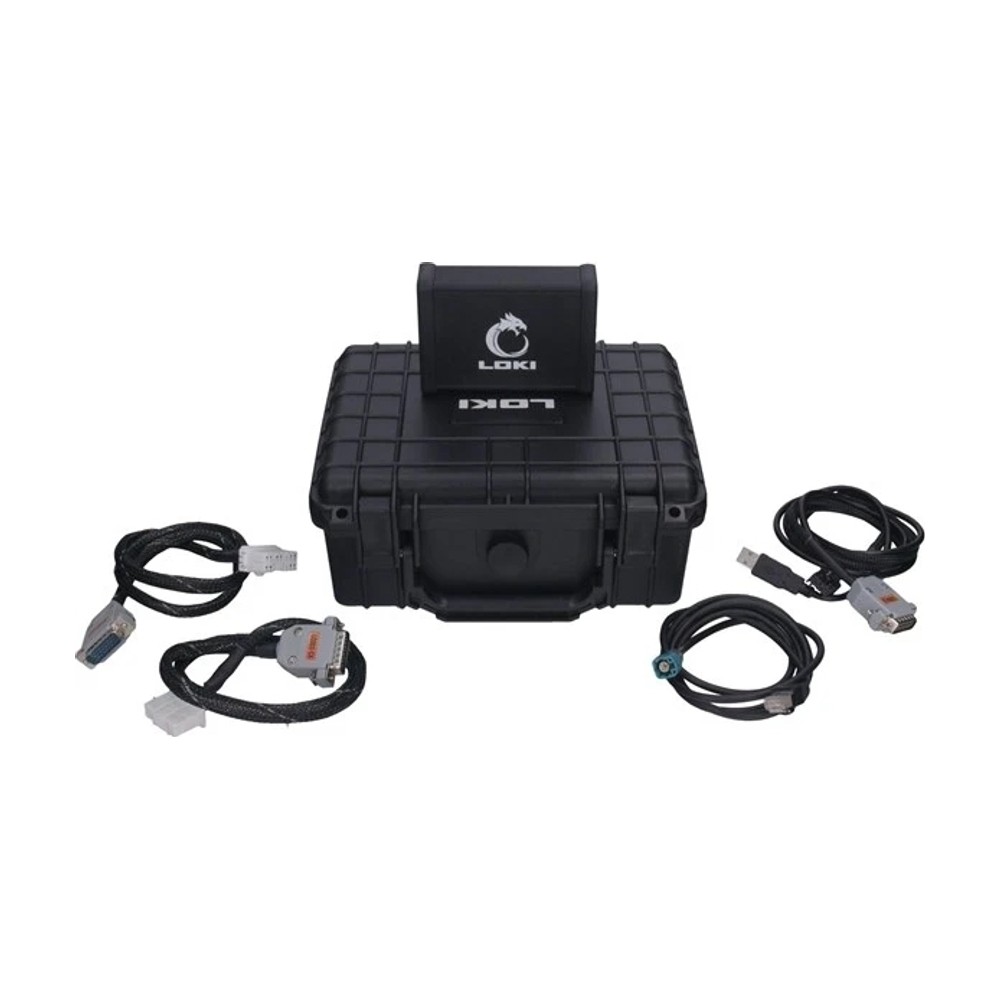

Loki Tesla  Electric Vehicle Diagnostic Tool The equipment set includes:

• Module LOKI

• Cable LC001-CS – Cable CAN for Tesla Model S

• Cable LC002-LS – Cable LAN for Tesla Model S/X

• Cable LC003-CX – Cable CAN for Tesla Model SR, Model X

• Cable LC004-L3 – Cable LAN for Tesla Model 3

Loki Tesla  Electric Vehicle Diagnostic Tool Functions available by May, 2021:

• Can be used for diagnostics of Tesla vehicles: Model S, Model X, Model 3;

• Vehicle updating with AP2\2.5\3.0 MX\MS\M3 manually;

• Navigation installation and setting: inclusive for firmware MS (tegra / intel), MX (tegra / intel), M3, MODEL Y;

• Firmware upgrade: available 2021.4.15;

• Complete change of vehicle configurations in Model S/X Tegra before 2020.48 and partial change before 2021.4.15;

• Complete change of vehicle configurations in Model S/X Intel Tegra before

2020.48 and partial change before 2021.4.15;

• Partial change of vehicle configurations in Model 3 before 2021.4.15 (Security Configuration presented separately);

• Able to change the configuration on M3 on any firmware without soldering;

• Alert codes reading and decoding;

• Service alert codes removal up to 2021.4.15;

• Data reading of all BMS blocks on all firmwares;

• DTC clearing from different ECUs;

• Reading of a pre-set PIN code with subsequent deactivation of Valet Mode;

• Reading of a pre-set Pin code with subsequent deactivation of PIN to drive;

Available soon:

Secured Configuration Features (only for Model 3)

• Activation of any Autopilot versions;

• Performance Activation of Security Configuration (only for Long Range Dual Motor, with PN last digits 980)

• Reconfiguration of Headlights and Direction Lights USA→EU.

• Activation of Premium Connectivity (Spotify, Youtube, e.t.c.)

• Supercharge Activation.

• Keys for M3

Secured Configuration is additional chargeable service allowing to expand the capacity of tool.

Loki requires special cable and software for work.

New Function Update in June:

• Secured Configuration (postponed until June)

• Some CAN modules operation

Physical Data:

NT.WT., kg - 0,42: weight of LOKI module + all the cables included in the equipment set

GR.WT., kg - 1,3: packed weight
