How Is CAT Construction Machine ECU Repair Done?

Repairing the ECU on a CAT construction machine has the same difficulty as any heavy equipment control unit: the machine is not a convenient test rig. Getting the unit onto a bench where its behaviour can be observed is what makes the repair possible.

That is what an ECU test simulator does.

How Bench Testing Works

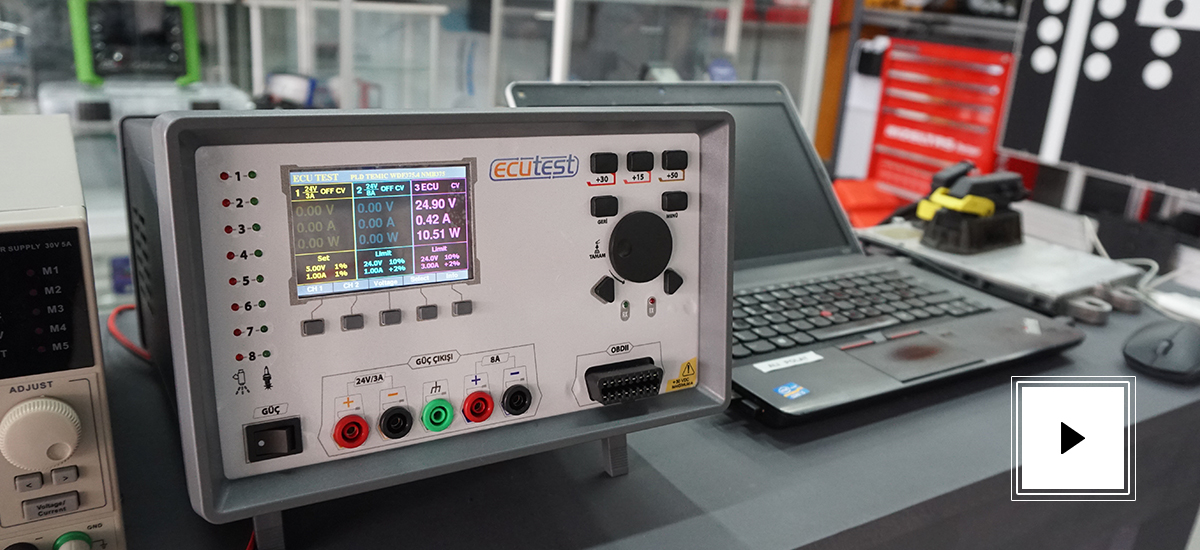

The ECUTEST KF-1500 simulator recreates the machine's electrical environment around the control unit. The unit is connected through the appropriate socket and diagram — without opening it — and the software loads the parameters specific to that unit from its online database.

Once connected, the simulator displays the voltages the ECU, injectors, sensors and valve outputs require and are producing. Application notes, slot diagrams and socket diagrams are shown alongside, with photographs and video where relevant.

Reading the Result

Faults are shown directly on screen: a section reporting an error appears in red. After the unit is repaired, that section clears automatically — which means the repair is confirmed on the bench, not on the machine.

The simulated environment behaves as though the unit were installed and running. Using the throttle input, the technician can exercise the movement sensors and parameters and watch the unit's real-time values respond.

Why This Changes the Job

Without a simulator, an ECU fault on a CAT machine is confirmed by fitting a replacement and seeing what happens. On heavy equipment that is expensive in parts, in labour, and above all in machine downtime — a machine standing idle on site costs more per day than the repair itself.

On the bench the faulty section is identified before anything is bought, and the repaired unit is verified before it goes back on the machine. The guesswork stage disappears.

What Else the Same Bench Covers

The KF-1500 is not limited to construction equipment. The same bench handles heavy vehicle ECUs, passenger car ECU repair, testing of working units, instrument cluster repair, fuel injector testing and cluster testing.

For an electronics repair business that breadth is the point: one bench serves every unit that comes through the door, rather than a separate rig for each category.

Equipment

Nitro Bilişim manufactures and supplies the ECUTEST range, including the connection sockets for individual control units.

See our test equipment and ECU programming devices, or tell us which control units you work on and we will confirm which sockets are available.
